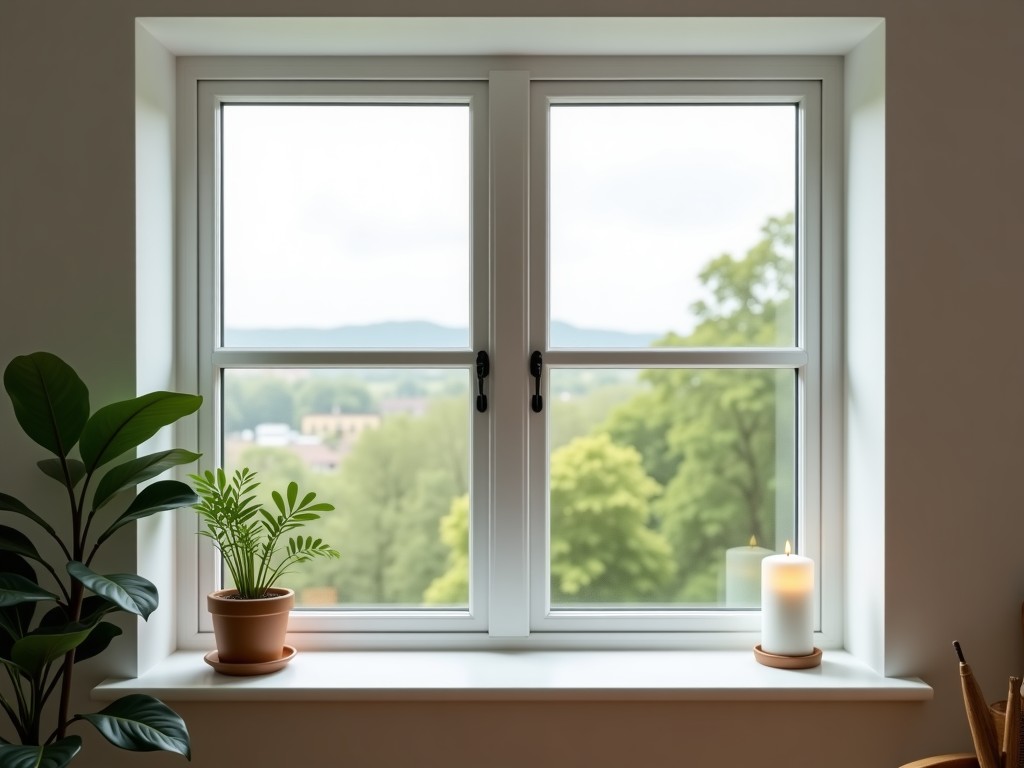

High-Performance Double Glazed Acoustic Windows for Industrial and Commercial Environments

The Engineering Behind Sound Reduction

Standard double glazing is designed for thermal insulation, but when two panes of the same thickness are used, they often reach a common resonance frequency, allowing specific sound frequencies to pass through easily. To achieve a high Sound Reduction Index (Rw) rating, we utilize the principle of asymmetrical mass distribution and mechanical decoupling.

By varying the thicknesses of the glass panes or utilizing an acoustic PVB interlayer in laminated units, we break the resonant cycle. The interlayer acts as a viscoelastic damper, converting kinetic energy from sound waves into a negligible amount of heat, preventing the vibration from transmitting through the entire assembly structure.

Technical Specification Overview

Material Selection and Performance Factors

Selecting the right acoustic configuration requires balancing acoustic performance with structural integrity and thermal efficiency. Procurement teams typically evaluate these based on the specific site environment:

• Acoustic Lamination: Essential for high-traffic urban areas. The PVB interlayer specifically targets mid-range-frequency noise.
• Asymmetrical Glazing: Using different thicknesses (e.g., 6mm paired with 8mm) prevents the glass panes from vibrating at the same frequency.
• Inert Gas Filling: While primarily for U-value improvement, Argon gas can slightly influence acoustic damping by increasing gas density within the air cavity.
• Frame Hermeticness: An acoustic window is only as good as its seal. We utilize multi-stage EPDM gaskets to ensure no air leaks bypass the acoustic unit.

Application Scenarios

Our acoustic solutions are deployed across various sectors where noise control is a critical project requirement:

Quality Control and Manufacturing Process

To ensure the specified Rw ratings are met, every unit undergoes rigorous testing. Our manufacturing process begins with precision CNC-cutting of the glass to ensure dimensional tolerances within ±1mm, critical for the airtight seal.

The units are assembled in a clean-room environment to prevent contamination of the spacer bars, which could lead to condensation over time. We perform acoustic laboratory testing on sample batches to verify that the damping performance matches the project-specific requirements before dispatch.

Frequently Asked Questions
