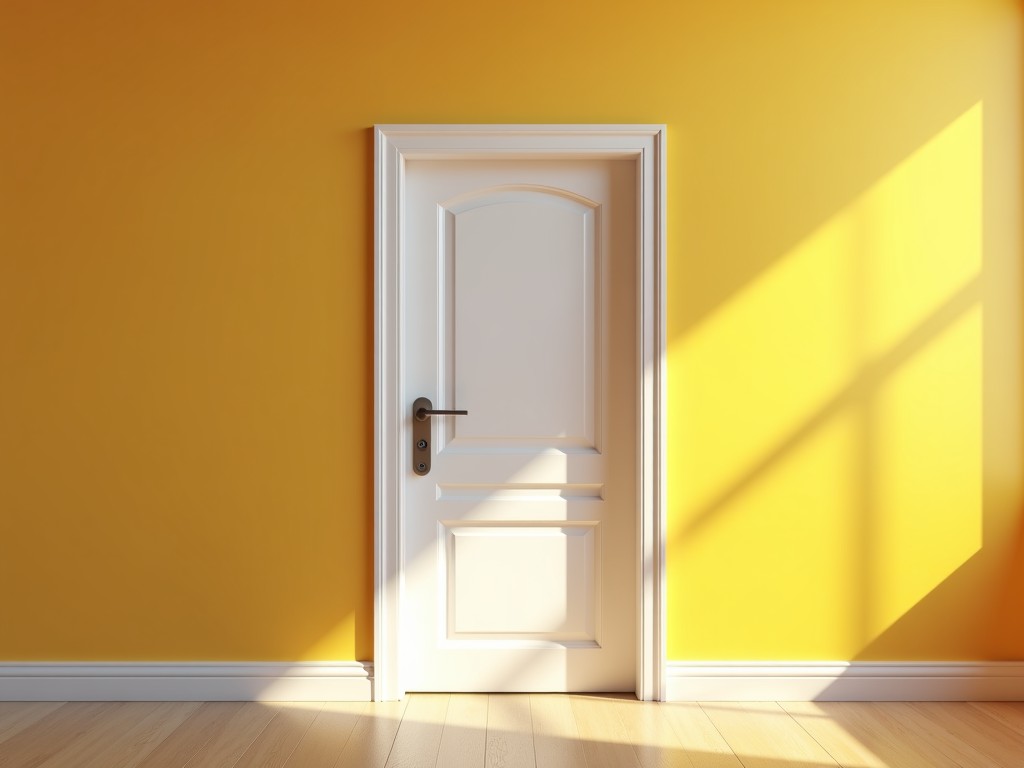

Project Fire Door: Engineered for Life-Safety Compliance in Industrial Facilities

When designing industrial buildings, fire safety systems must integrate seamlessly with structural and operational requirements. A project fire door is not a standard component—it is a custom-engineered assembly designed to meet specific fire resistance ratings, dimensional constraints, and hardware integration needs as defined in the project specification. These doors are typically supplied as part of a larger fire compartmentation strategy, where performance is validated through third-party testing to standards such as BS 476 Part 22 or EN 1634-1.

Unlike off-the-shelf fire doors, project-specific units are developed in close collaboration with architects, fire engineers, and main contractors to ensure compatibility with wall constructions, floor finishes, and adjacent building services. This coordination minimizes on-site modifications and reduces the risk of non-compliance during final inspection.

Material Selection Based on Fire Rating and Environmental Exposure

The core materials used in project fire doors are selected to achieve the required fire resistance period—commonly 30, 60, 90, or 120 minutes—while also addressing environmental factors such as humidity, chemical exposure, or mechanical impact. For internal applications in dry environments, mineral core composites with steel facings are frequently specified due to their stability and ease of finishing. In areas prone to moisture or cleaning regimens, such as food processing zones or chemical plants, stainless steel facings or moisture-resistant cores (e.g., calcium silicate or proprietary ceramic-based composites) may be specified to prevent degradation over time.

Edge seals, intumescent strips, and smoke gaskets are matched to the door leaf and frame materials to ensure consistent performance under fire conditions. These components expand at precise temperatures to seal gaps, maintaining the integrity of the fire barrier. The selection of sealing systems is based on the gap tolerance between door and frame, which is typically maintained at 2–4 mm during installation to allow for proper activation of intumescent materials.

Manufacturing Process Aligned with Project Tolerances

Project fire doors are manufactured to tight dimensional tolerances because even minor deviations can compromise fire performance or hinder hardware installation. Leaf thickness, overall height and width, and the positioning of cutouts for vision panels, louvers, or hardware are controlled within ±1.5 mm unless otherwise specified in the project drawings. This precision is achieved through CNC cutting of core materials and precision pressing or welding of face sheets, followed by controlled bonding under vacuum or pressure to eliminate voids.

Each door leaf is manufactured as a matched set with its frame to ensure consistent alignment. Frames are typically formed from folded steel profiles or extruded aluminum, with mitered and welded corners ground smooth for seamless sealing. Anchor points for fixing to the surrounding structure are pre-drilled or welded in place according to the substrate type—concrete, masonry, or steel stud—based on project requirements.

Hardware Integration and Functional Requirements

The functionality of a project fire door depends on the correct selection and installation of fire-rated hardware. Hinges, locks, closers, and panic devices must be certified for use with the specific door assembly and fire rating. In high-traffic areas such as corridors or stairwells, self-closing mechanisms are mandatory, and their closing speed and force are adjusted to meet accessibility standards while ensuring reliable latching during a fire event.

For applications requiring controlled access—such as plant rooms, electrical switchrooms, or hazardous material storage—electromechanical locks or access control systems may be integrated. These are specified to fail-safe or fail-secure based on the fire strategy, with power supplies and cabling routed to maintain circuit integrity during exposure to heat. All hardware cutouts are reinforced to prevent weakening of the door leaf or frame.

Typical Specifications for Industrial Project Fire Doors

These values represent common configurations encountered in industrial projects. Actual dimensions, material thicknesses, and hardware specifications are finalized during the shop drawing approval phase, where the door manufacturer coordinates with the project’s fire consultant and structural engineer to ensure compliance with the fire strategy document.

Customization Options for Complex Openings

Project fire doors are frequently adapted to accommodate non-standard requirements. Vision panels with fire-rated glass are common in areas requiring visual supervision, such as control rooms or cleanrooms. The glass type—typically wired ceramic or borosilicate—is selected to match the door’s fire rating, and the glazing beads are designed to retain the glass under thermal stress without compromising the seal.

Louvre panels for air transfer are specified in plant rooms or equipment enclosures where ventilation is required but fire compartmentation must be maintained. These louvres incorporate intumescent blades that close automatically when exposed to heat, preserving the fire barrier. Similarly, lead-lined or radiation-shielded variants are available for use in medical or nuclear facilities, where the door must provide both fire protection and additional shielding properties.

For openings in curved walls or non-rectangular geometries, custom-formed frames and tapered leaf edges can be manufactured to match the surrounding construction. These solutions require detailed templating or laser scanning of the opening during the site survey phase to ensure accurate fabrication.

Packaging, Logistics, and Site Handling

Due to their size and sensitivity to damage, project fire doors are packaged individually in protective wrapping—typically polyethylene film with corner guards—and stacked on pallets designed for forklift handling. Each unit is labeled with a unique identifier that links to the shop drawing, fire certificate, and hardware schedule, enabling traceability from factory to final installation.

Longitudinal bending or twisting during transit can affect the alignment of the door in the frame, so rigid edge protectors and internal bracing are used to maintain geometric stability. For international shipments, moisture barrier wrapping and desiccant packs are included to prevent condensation damage to steel faces or core materials during prolonged transit or storage in humid climates.

On-site, doors should be stored vertically in a dry, covered area away from direct sunlight and chemical exposure. Installation is typically carried out by specialized fire door installers who follow the manufacturer’s fixing instructions, ensuring correct clearance, proper anchoring, and uninterrupted intumescent seal continuity around the perimeter.

Quality Control and Factory Testing

Before leaving the factory, each project fire door undergoes a series of checks to verify dimensional accuracy, surface finish, and hardware function. Leaf squareness, diagonal measurements, and gap uniformity are assessed against the approved shop drawing. Operational tests confirm that the door closes freely from any angle and latches securely without binding.

While individual doors are not routinely subjected to full fire tests (due to cost and destructive nature), manufacturers rely on batch testing of representative samples from each production run, combined with strict process control and material traceability, to ensure consistency with the certified design. Documentation including material certificates, CE marks (where applicable), and test reports from the prototype test are provided as part of the submission package for building control approval.

For projects requiring third-party witness testing or additional validation, witness points can be arranged during production, allowing the client’s representative or appointed consultant to observe critical stages such as core bonding, frame welding, or hardware installation.
