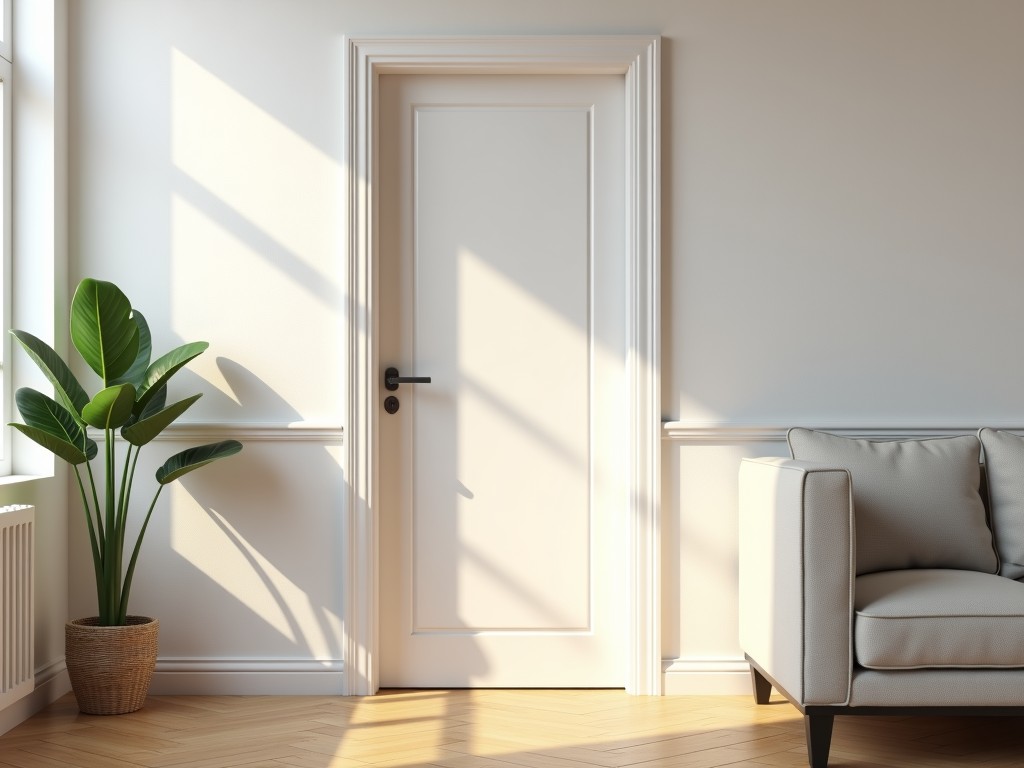

Hollow Core Flush Door – Industrial-Grade Interior Partition Solution

Designed for environments requiring lightweight yet structurally stable interior barriers, hollow core flush doors combine a rigid outer skin with a cellular or honeycomb core to achieve high stiffness-to-weight ratios. This construction minimizes material use while maintaining dimensional stability under varying humidity and mechanical loads, making them suitable for repeated cycling in factory offices, control rooms, and modular building systems.

Engineering Perspective: How Hollow Core Construction Achieves Performance

The door’s performance derives from the synergistic action of its components: two face sheets (typically MDF, particleboard, or veneered plywood) bonded to a lightweight internal grid. This grid—often corrugated cardboard, thermoplastic honeycomb, or segmented wood strips—resists shear and prevents face sheet buckling under lateral loads. Unlike solid core alternatives, the hollow design reduces mass by 40–60% without proportional loss in flexural rigidity, easing handling and lowering inertial forces during operation.

Critical to long-term stability is the adhesive bond between core and faces. Industrial-grade PVA or polyurethane adhesives, applied under controlled pressure and temperature, prevent delamination under cyclic stress. Edge sealing—commonly with solid wood or PVC strips—protects the core from moisture ingress at vulnerable points, a key consideration in facilities with washdown areas or fluctuating HVAC conditions.

Material Selection: Matching Core and Face Materials to Application Demands

Face sheet choice directly influences surface durability, finish quality, and compatibility with downstream processes like laminating, painting, or veneering. For high-traffic zones, high-density overlay (HDO) or melamine-faced particleboard offers abrasion resistance; in environments requiring fire retardancy, FR-grade MDF or plywood with certified additives is specified. Core materials vary by performance priority: corrugated paper provides cost-effective rigidity for light-duty partitions; thermoplastic honeycomb (e.g., polypropylene) delivers superior moisture resistance and repeatable compressive strength for humid or cleaned areas; wood lattice cores enhance screw-holding capacity for hardware mounting.

Thickness tolerances are typically held to ±1.5 mm across the panel, with squareness within 2 mm per meter—values critical for seamless integration into aluminum or steel door frames. These tolerances are maintained through precision calibration of hot presses and die-cutting tools during core fabrication, ensuring consistent panel geometry across production runs.

Manufacturing Process: Ensuring Consistency in Large-Volume Production

Production begins with core formation: corrugators shape paper into fluted profiles, or extrusion lines produce thermoplastic honeycomb to specified cell size and wall thickness. Face sheets are cut to nominal dimensions, adhesive is metered onto core and faces, and the assembly enters a multi-opening hot press where heat (typically 110–130°C) and pressure (0.8–1.2 MPa) activate the adhesive and consolidate the bond. Post-pressing, doors are cooled under restraint to prevent warp, then trimmed to final size and edge-banded.

Quality control includes inline thickness gauging, bond strength sampling via peel tests, and visual inspection for adhesive squeeze-off or core distortion. For OEM lots, dimensional reports and adhesion certificates are available upon request, supporting traceability in regulated supply chains.

Typical Specifications: Parameters Procurement Teams Evaluate

Application Scenarios: Where Hollow Core Flush Doors Deliver Value

In automotive supplier facilities, these doors are used in administrative corridors and break areas where impact resistance is moderate but weight reduction eases daily handling by staff. Electronics assembly plants specify moisture-resistant cores in cleanroom-adjacent gowning rooms to prevent particulate shedding from degrading paper-based cores. Logistics centers install them in office mezzanines above picking aisles, benefiting from low dead load on structural floors while maintaining acoustic separation sufficient for speech privacy.

For modular building manufacturers, hollow core doors integrate seamlessly into steel-stud wall panels due to their predictable weight and dimensional accuracy. OEMs producing prefabricated toilet blocks or site offices often specify pre-drilled hardware cutouts and factory-applied primer to reduce on-site labor. The ability to laminate or veneer faces post-production allows distributors to match door aesthetics to interior schemes without compromising core performance.

Customization Options: Adapting to Project-Specific Requirements

Beyond standard sizes, manufacturers can adjust core geometry—varying honeycomb cell diameter or corrugation pitch—to tune flexural stiffness or compressive strength for non-uniform load distributions. Face sheets can be overlaid with high-pressure laminate (HPL) for chemical resistance in laboratory settings or coated with intumescent paint for upgraded fire ratings, subject to certification testing. Hardware preparations—such as mortises for hinges, latch plates, or panic bars—are performed via CNC routing to ensure positional accuracy relative to door edges.

Packaging is tailored to transit mode: doors are stacked horizontally with interleaving corrugated sheets and corner protectors, then stretch-wrapped or placed in crush-resistant cartons for LTL shipments. For export, fumigation-compliant pallets and moisture-barrier liners are available. Lead times typically range from 10–20 working days for stock configurations, extending to 25–35 days for customized cores or special face treatments, depending on material availability and tooling readiness.

Quality Control: Building Confidence in Consistency

Each production lot undergoes sampling for bond integrity (ASTM D905 peel test), thickness variation, and diagonal deviation. Surface finish is assessed under standardized lighting for uniformity of gloss or texture. For fire-rated variants, samples are sent to accredited labs for ASTM E84 or EN 13501-1 evaluation, with reports provided to customers. These controls help procurement teams predict long-term performance and reduce field failure risks associated with adhesive creep or core compression set.

Traceability is maintained through batch tags linking raw material certificates to finished goods, supporting audits in automotive or aerospace supply chains where material provenance is scrutinized. While exact lifespan varies with use, properly specified and installed hollow core flush doors typically endure 10–15 years in interior partition roles before cosmetic refurbishment is considered.

Discuss your project requirements with our engineering team to review material options, tolerances, and customization paths suited to your facility’s operating conditions.
