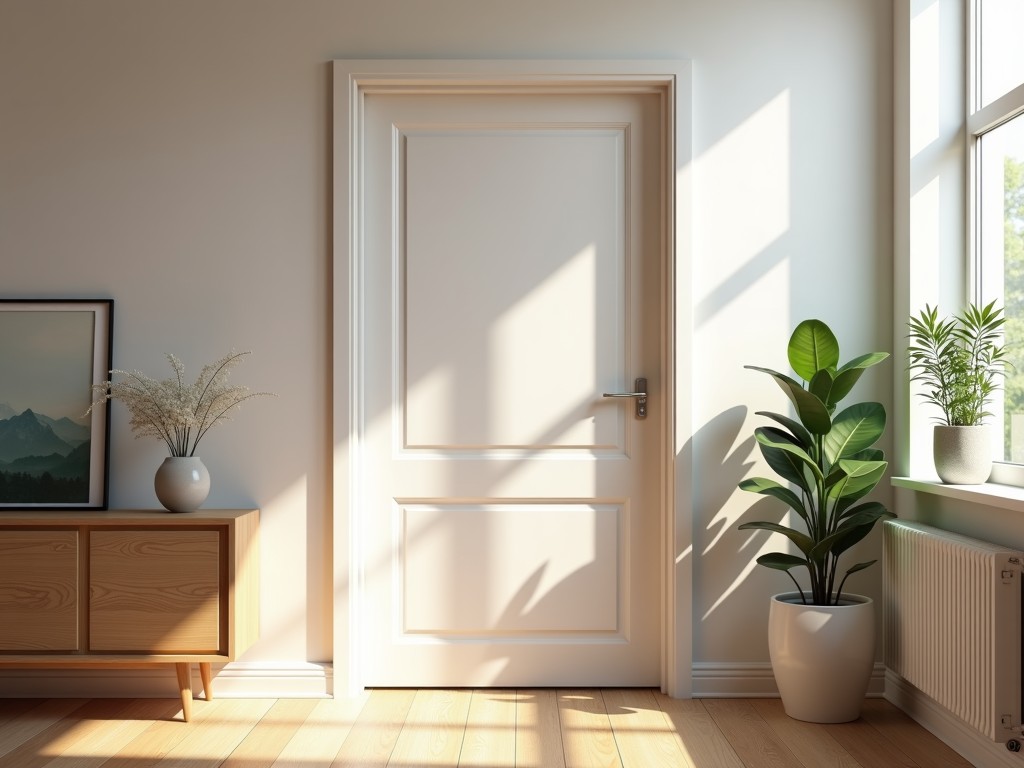

OEM 30 Minute Fire Door
In industrial and commercial facilities where fire compartmentalization is required by building codes, a 30 minute fire door provides a verified barrier to flame and smoke spread for a specified duration. These doors are engineered to maintain integrity and insulation under standardized fire exposure, supporting life safety and property protection without compromising operational access.
Designed for OEM integration, these doors are supplied as leaf-only assemblies or complete framesets, allowing equipment manufacturers, system integrators, and facility contractors to incorporate certified fire resistance into custom enclosures, control rooms, electrical substations, or machinery housings where standard off-the-shelf doors do not meet dimensional or interface requirements.
Engineering Basis of 30 Minute Fire Resistance
Fire resistance rating is determined through standardized testing (e.g., EN 1634-1, BS 476 Part 22, or UL 10C) where the door assembly is exposed to a controlled time-temperature curve. A 30 minute rating indicates the assembly maintained structural integrity, limited flame penetration, and kept the unexposed face temperature below specified thresholds for the duration.
Performance depends on the synergistic behavior of components: the door core (often mineral wool, gypsum, or proprietary composites), intumescent seals that expand under heat to close gaps, and the frame and hardware designed to resist warping. The rating applies only to the tested assembly; field modifications void certification unless re-evaluated.
Material Selection and Construction
Door leaves typically consist of a steel or timber perimeter frame encapsulating a fire-resistant core. Steel leaves use galvanized or cold-rolled sheets (0.8–1.2 mm) spot-welded or locked seam, filled with non-combustible insulation. Timber leaves may use solid hardwood or engineered stiles and rails with a fire-rated core, requiring edge sealing with intumescent strips.
Intumescent seals, usually sodium silicate or graphite-based, are routed into the frame or leaf edges. Upon heating, they expand to seal gaps around the perimeter and at the head, preventing smoke and flame passage. Hinges, locks, and closers must be fire-rated and installed per the manufacturer’s approval documentation to maintain the assembly’s validity.
Typical Specifications
| Parameter | Typical Range / Detail |
|---|---|
| Fire Rating | 30 minutes (integrity and insulation) |
| Leaf Thickness | 40–54 mm (depending on core and facing) |
| Frame Depth | 90–120 mm (to accommodate leaf and seals) |
| Core Material | Mineral wool, gypsum, vermiculite, or proprietary composites |
| Facing Options | Galvanized steel, stainless steel, timber veneer, or laminate |
| Intumescent Seal | Integrated in frame or leaf; activates ~200°C |
| Maximum Leaf Size | Up to 1100 × 2200 mm (single leaf); larger via coupling |
| Hardware Compatibility | Fire-rated hinges, locks, closers, and panic bars (as per approval) |
Values represent common configurations; actual dimensions, core materials, and facings are customized per project requirements, fire test evidence, and interface constraints. Hardware must be selected from the manufacturer’s approved list to maintain certification.
Application Scenarios for OEM Integration
OEM 30 minute fire doors are specified where standard architectural doors cannot accommodate custom interfaces, equipment clearances, or mounting requirements. Common applications include:
- Electrical switchgear and transformer enclosures requiring fire segregation between zones
- Control rooms and server housings in power generation or industrial plants
- Machinery housings where access panels must maintain fire compartment integrity
- Custom-built enclosures for hazardous material storage or process isolation
- Transportation infrastructure (railway signaling rooms, tunnel ventilation control)
In each case, the door is engineered to match the host structure’s opening dimensions, hardware placement, and environmental exposure (e.g., humidity, temperature cycling, or chemical vapors), ensuring the fire resistance performance is not compromised by integration.
Customization and OEM Services
As an OEM supplier, we provide fire door leaves and framesets tailored to specific project geometries, interface requirements, and finish specifications. Customization includes:
- Non-standard leaf sizes and aspect ratios
- Custom cutouts for vision panels, louvers, or service penetrations (with fire-rated sleeves)
- Specific facing materials (e.g., brushed stainless, powder-coated RAL colors, or wood grain laminates)
- Prepared hardware locations (hinge, lock, closer reinforcements)
- Frame designs for weld-in, bolt-in, or groove-in installation into host structures
Engineering support includes reviewing opening dimensions, recommending compatible hardware, and providing installation details. Quotations require detailed drawings or schedules showing leaf size, frame type, handing, and any cutouts or special features.
Packaging, Logistics, and Installation
Door leaves are packed flat or on edge in corrugated cardboard or plywood crates with edge protectors and moisture barriers. Frames are disassembled for nesting where possible to reduce volume. Each package includes installation instructions, hardware templates, and a copy of the fire test certification or approval document.
Lead times depend on complexity and volume; standard configurations typically ship within 3–4 weeks, while customized units with special facings or large cutouts may require 5–6 weeks. Installation must follow the approved method: incorrect hardware, improper seal compression, or frame distortion can invalidate the fire resistance rating.
Quality Control and Certification
Each fire door assembly undergoes dimensional verification, seal continuity checks, and hardware fit testing before shipment. Fire resistance relies on third-party test evidence; we provide the relevant certification (e.g., EN 1634-1, UL 10C) for the base design, which serves as the basis for project-specific appraisal.
Field-installed assemblies must match the tested configuration. Any deviation — such as substituting unapproved hardware, altering seal profiles, or modifying the core — requires re-evaluation by a certified fire consultant or testing authority to confirm ongoing compliance.
Discuss Your Fire Door Requirements
Share your project specifications, including leaf dimensions, frame type, handing, and any required cutouts or finish details. Our engineering team will review the details for compatibility with fire test evidence and provide a customized proposal with lead time and installation guidance.
